Assa Abloy   Communication Hubs

For all your identification and access control needs

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

AH40 - IP


Features:
  • For connection to EAC system via IP/Ethernet connection
  • Allows to connect up to 8 Aperio® devices on a single hub
  • Integrated antenna with the option to mount an external antenna
  • Encrypted radio communication
  • TCP/IP communication encrypted using TLS 1.1/1.2
  • Powered using Power over Ethernet (PoE) or external power supply
  • AH40 is certified to be used with Assa Abloy external antenna AH ANTENNA 1. If other external antenna is used it must be of same type (dipole) and not have larger antenna gain than 3.9dBi.
  • For standard electrical installation boxes
  • LED for status visualisation


AH13 1-to-1 - RS485


Features:
  • For connection to EAC system via RS485 bus (addressable)
  • Provides radio communication to the Aperio® door devices
  • Integrated antenna
  • Encrypted radio communication
  • For standard electrical installation boxes
  • LED for status visualisation

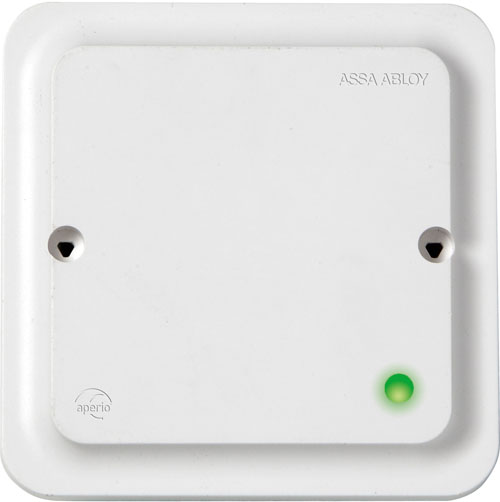

AH30 1-to-8 - RS485


Features:
  • For connection to EAC system via RS485 bus (addressable)
  • Allows to connect up to 8 Aperio® devices on a single hub
  • Integrated antenna with the option to mount an external antenna
  • Encrypted radio communication
  • For standard electrical installation boxes
  • LED for status visualisation


AH15 1-to-1 - Weigand


Features:
  • For connection to EAC system via Wiegand interface
  • Provides radio communication to the Aperio® door devices
  • Integrated antenna
  • Encrypted radio communication
  • For standard electrical installation boxes
  • LED for status visualisation


AH20 1-to-1 - Advanced Weigand


Features:
  • For connection to EAC system via Wiegand interface
  • Provides radio communication to the Aperio® door devices
  • Integrated antenna with the option to mount an external antenna
  • Encrypted radio communication
  • For standard electrical installation boxes
  • LED for status visualisation


Benefits

  • Assa Abloy brings together the world's leading brands to deliver the latest developments in security, with lower costs and increased efficiency.
  • Assa Abloy offers a more complete range of door opening solutions than any other company on the market.
  • The Assa Abloy brand family delivers some of the most trusted security solutions available today to some of the world's most demanding customers.
