ACT   smart

For all your identification and access control needs

Access Control Technology (ACT) specialise in the design and manufacture of superior quality electronic Access Control and Door Entry products. Combining reliability and quality with engineering expertise and innovation, the ACT product portfolio has a functionality that is user friendly, effective and well developed in line with the demands of the market.

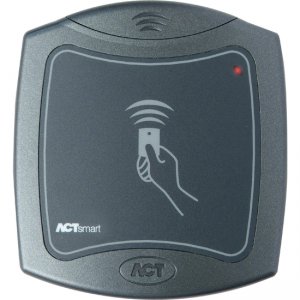

ACTsmart2 1070


Features:
  • Combined proximity reader / controller
  • 1,000 users
  • Standalone (1 door), master-slave (8 doors) and networkable (16 doors)
  • Programmable inputs and outputs: push to exit, door monitoring, door alarm (ajar or forced), fire alarm override, interlock
  • Tamper output
  • 5 amp, 30 Volt DC relay
  • Smartlock option for added security
  • robust polycarbonate housing
  • indoor / outdoor (IP67)
  • surface / flush mount options
  • mounts on standard single gang electrical back box
  • Can be programmed using:
  • Programming card (standalone)
  • The master keypad (master-slave)
  • ACTsmart2 software (network)

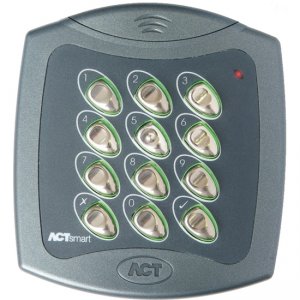

ACTsmart2 1080


Features:
  • Combined proximity reader and controller
  • 1,000 users (500 if pin & prox)
  • Standalone (1 door), master-slave (8 doors) and networkable (16 doors)
  • Programmable inputs and outputs: push to exit, door monitoring, door alarm (ajar or forced), fire alarm override, interlock
  • Tamper output
  • 5 amp, 30 Volt DC relay
  • robust polycarbonate housing, stainless steel keys
  • keypad backlighting
  • indoor / outdoor (IP67)
  • surface / flush mount options
  • mounts on standard single gang electrical back box
  • can be programmed using
  • Programming card (standalone)
  • The master keypad (master-slave)
  • ACTsmart2 software (network)

ACTsmart2 1090


Features:
  • Combined pin only reader and controller
  • 1,000 users
  • Standalone (1 door), master-slave (8 doors) and networkable (16 doors)
  • Programmable inputs and outputs: push to exit, door monitoring, door alarm (ajar or forced), fire alarm override, interlock
  • Tamper output
  • 5 amp, 30 Volt DC relay
  • Smartlock option for added security
  • polycarbonate housing, stainless steel keys
  • keypad backlighting
  • indoor/outdoor (IP67)
  • surface / flush mount options
  • mounts on standard single gang electrical back box
  • can be programmed using
  • Programming card (standalone)
  • The master keypad (master-slave)
  • ACTsmart2 software (network)

ACTsmart2 Controller


Features:
  • Required for ACTsmart2 software
  • Controls up to 16 ACTsmart2 reader/controllers
  • 1,000 users
  • 16 User Groups
  • 100,000 log events
  • 12 Volt DC
  • Polycarbonate housing
  • LED indicators
  • Indoor only

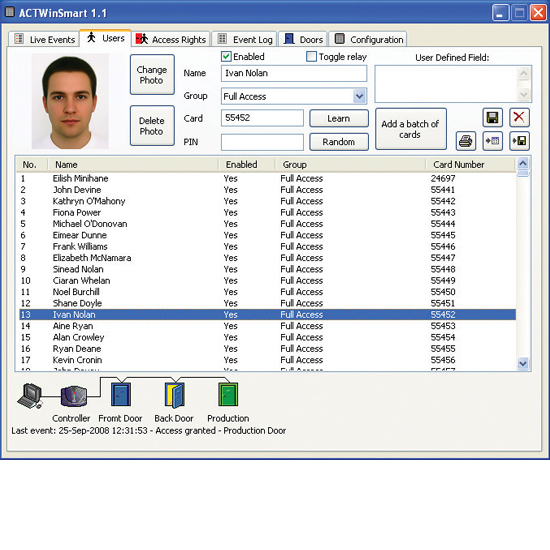

ACTsmart2 Software


Features:
  • 16 user groups
  • up to 4 time zones per user group to a max of 16
  • 100,000 event log
  • access control reports
  • password protection
  • upload facility
  • photo ID for each user
  • built-in translator
  • software and serial lead supplied with ACTsmart2 network controller
  • Windows 7, Vista, XP, 2003 compatible


Benefits

  • From one domestic door on your home, to a system with 1,000s of doors around the country, ACT products can ensure you have the greatest peace of mind.
  • ACT's award winning designs are discreet and stylish. From the simple metal and glass look of the recessed panel-mount readers, to the ease of installation of the ACTpro eLock, their designs look great in any setting.
  • ACT's wide ranging industry experience allows us to keep developing the latest products in access control, ensuring you are always getting the best possible solution for your home or business.
